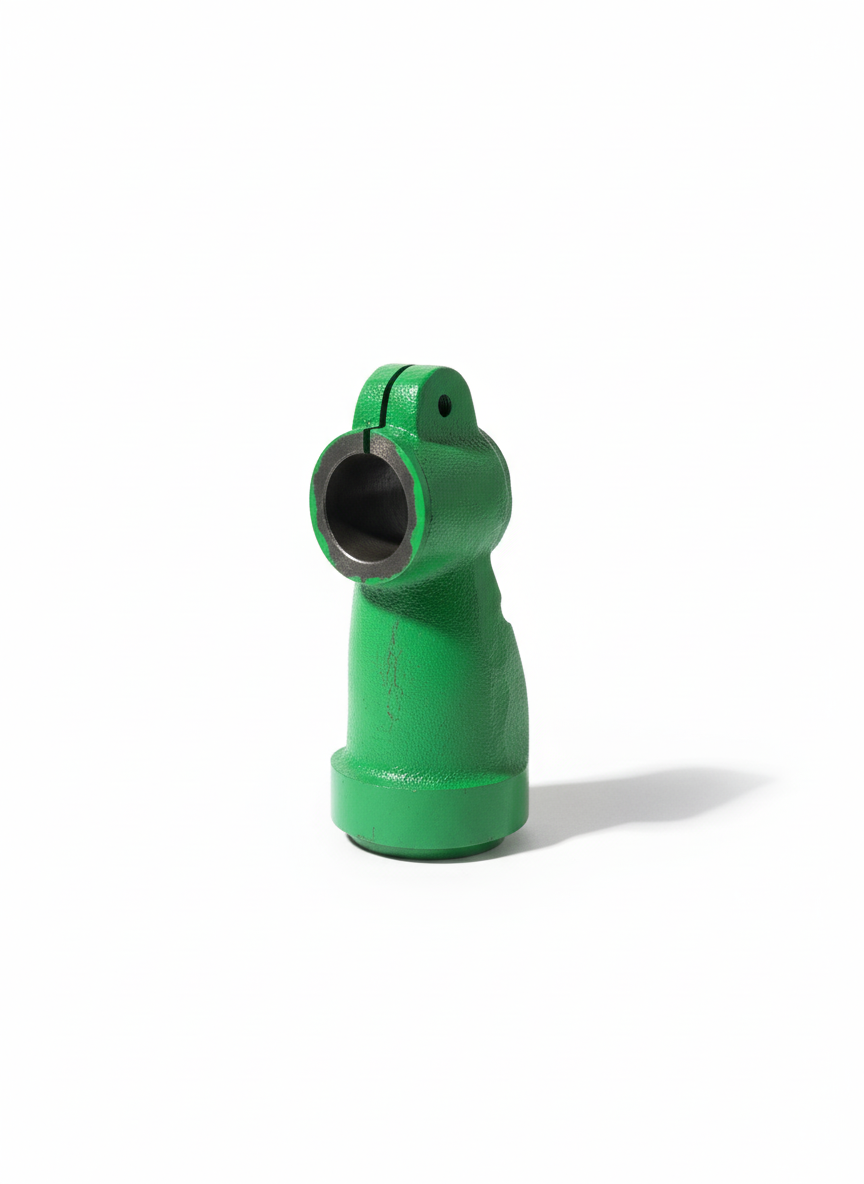

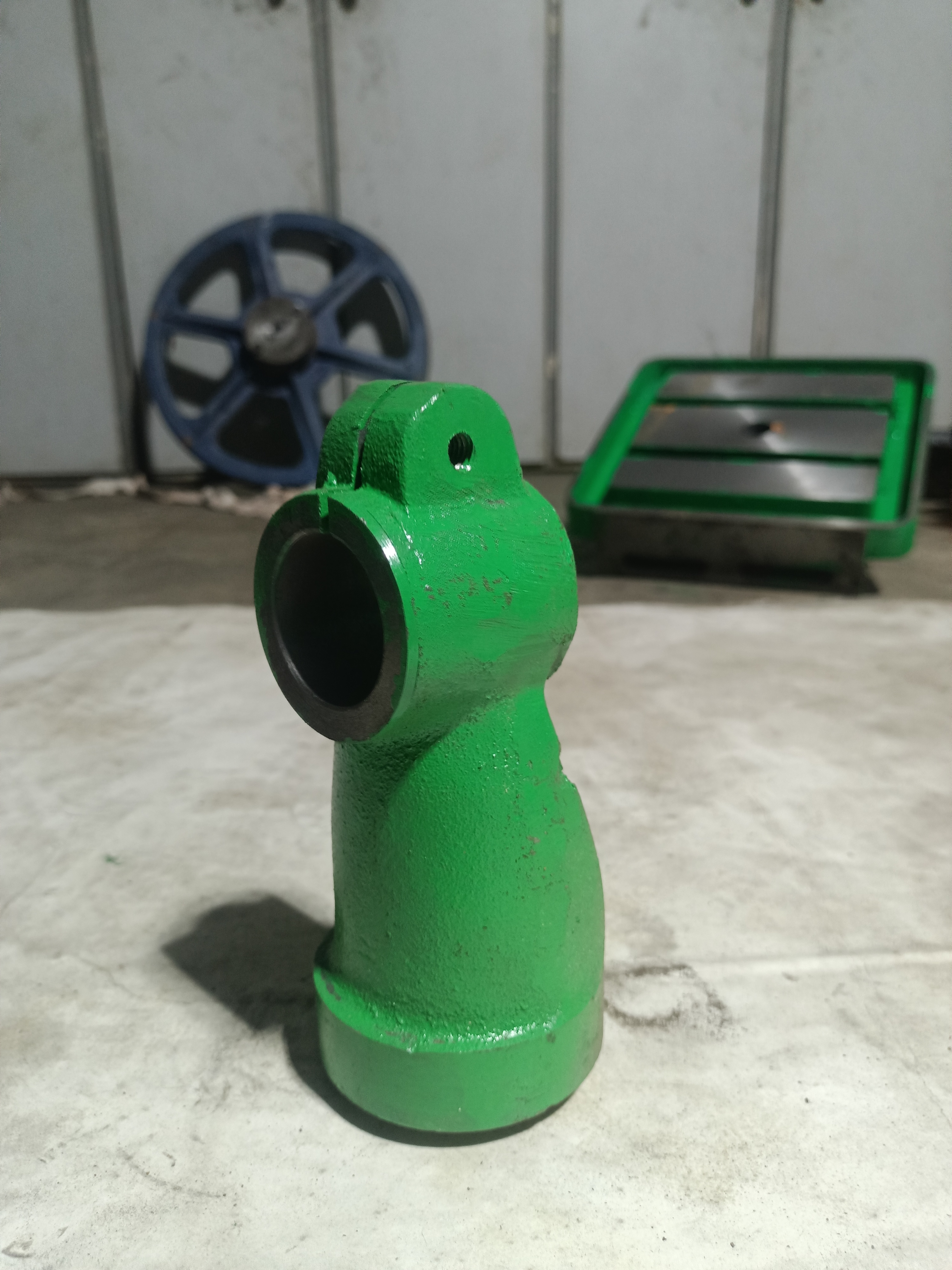

Table Bracket
Bracket that mounts the work table to the column assembly and allows it to be positioned and locked.
- Material Options
- Cast Iron (C.I.)
- Available dimensions
- 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample
- Compatibility
- Standard pillar and industrial drill machines
| Material Name | 1/2" Size | 3/4" Size | 3/4" × 15" Size | 1" Size |
|---|---|---|---|---|
| C.I. | ₹770 | ₹920 | N/A | N/A |
| C.I. | ₹535 | ₹620 | ₹975 | ₹975 |
Table Bracket Manufacturer in Ahmedabad
The Table Bracket connects the work table to the column assembly. It carries the weight of the table and job, allows the table to be swung or positioned, and holds that position once locked.
Cracks around the mounting boss or a worn locking arrangement are the usual reasons for replacement. When the bracket is no longer holding, the table shifts during drilling and hole position accuracy suffers.
This component is manufactured by Vishwakarma Engineering Works in Ahmedabad, Gujarat and supplied as a replacement part for pillar and industrial drill machines. Send your machine size, the existing bracket or a photograph with your enquiry so the right size can be confirmed. Enquiries from across India are welcome.
Table Bracket Specifications
| Product Name | Table Bracket |
|---|---|
| Material Options | Cast Iron (C.I.) |
| Available Dimensions | 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample |
| Compatibility | Standard pillar and industrial drill machines |
| Manufacturer & Supplier | Vishwakarma Engineering Works, Ahmedabad, Gujarat |
| Supply Scope | Pan India |
Get Price & Availability for Table Bracket
