Main Pulley With Gear
Combined stepped pulley and gear unit that transfers belt drive from the motor into the drill machine head.
- Material Options
- Cast Iron (C.I.)
- Available dimensions
- 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample
- Compatibility
- Standard pillar and industrial drill machines
| Material Name | 1/2" Size | 3/4" Size | 3/4" × 15" Size | 1" Size |
|---|---|---|---|---|
| C.I. | ₹595 | ₹930 | ₹930 | ₹1670 |
Main Pulley With Gear Manufacturer in Ahmedabad

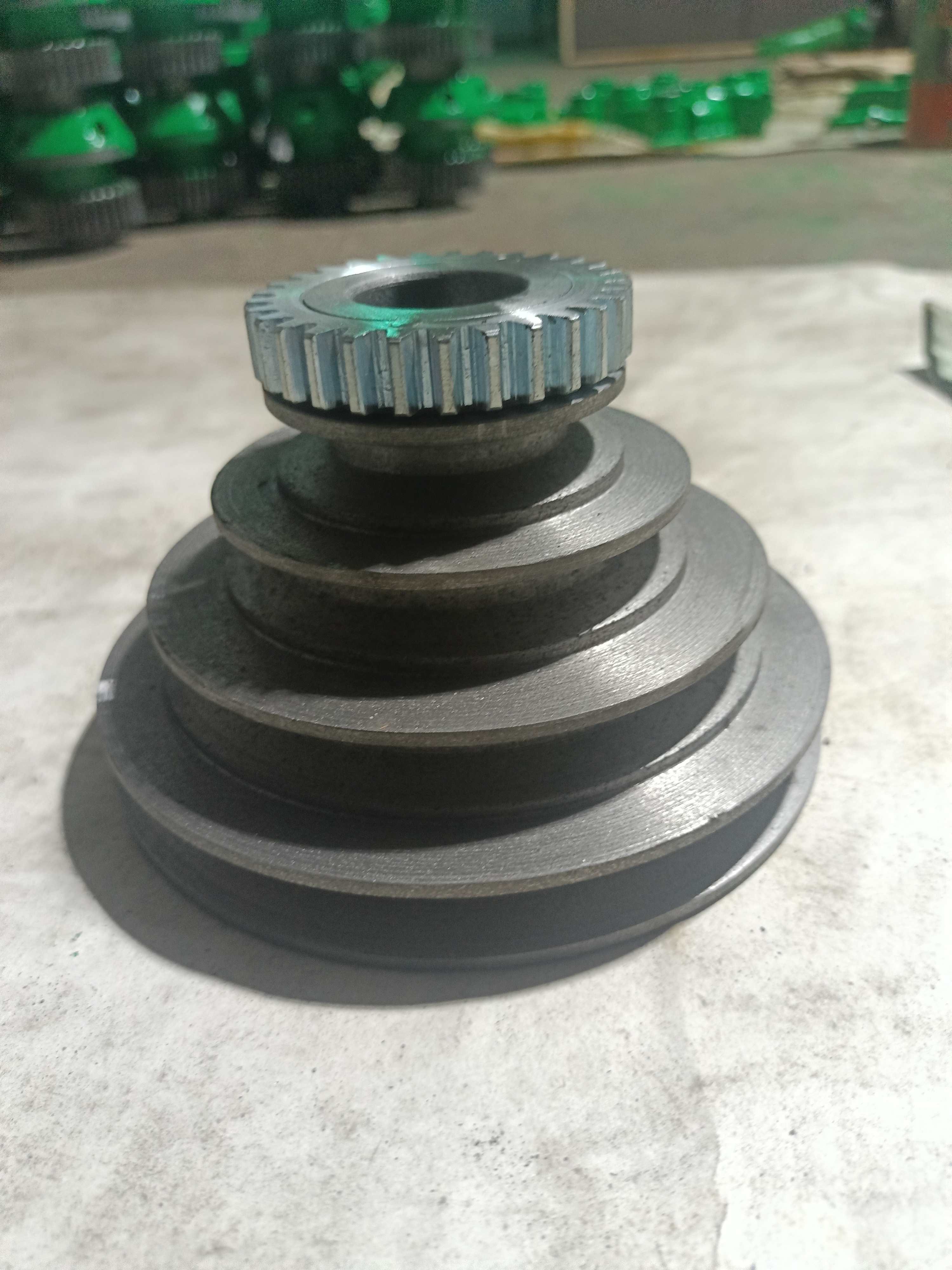

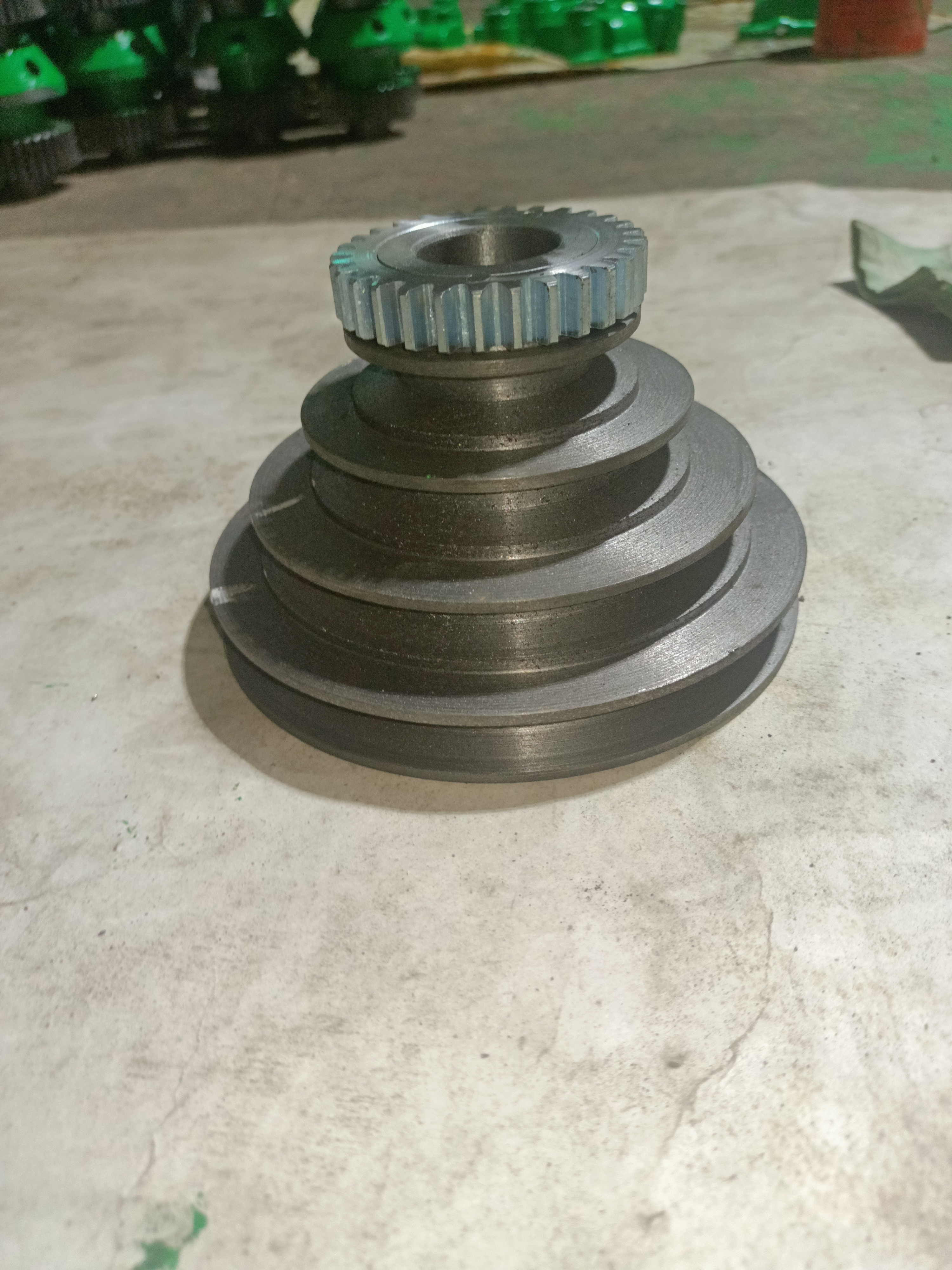

The Main Pulley With Gear is a combined component in which the stepped belt pulley and the driving gear are built into a single unit. It receives the belt drive coming from the motor pulley and passes that rotation into the head of the drill machine, where it is transmitted onward to the spindle assembly.
Because this part handles continuous belt tension and gear loading at the same time, worn belt grooves or chipped gear teeth usually show up as belt slip, speed loss or a rattling noise from the head. Replacing the complete pulley-and-gear unit restores correct drive alignment without disturbing the rest of the transmission.
Vishwakarma Engineering Works manufactures this component in Ahmedabad, Gujarat as a replacement part for pillar and industrial drill machines. Sizes are made to suit different machine capacities — share your machine size, an old sample or a photograph and we will confirm the matching part for your enquiry. Enquiries are accepted from Ahmedabad, across Gujarat and from customers throughout India.
Main Pulley With Gear Specifications
| Product Name | Main Pulley With Gear |
|---|---|
| Material Options | Cast Iron (C.I.) |
| Available Dimensions | 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample |
| Compatibility | Standard pillar and industrial drill machines |
| Manufacturer & Supplier | Vishwakarma Engineering Works, Ahmedabad, Gujarat |
| Supply Scope | Pan India |
Get Price & Availability for Main Pulley With Gear
