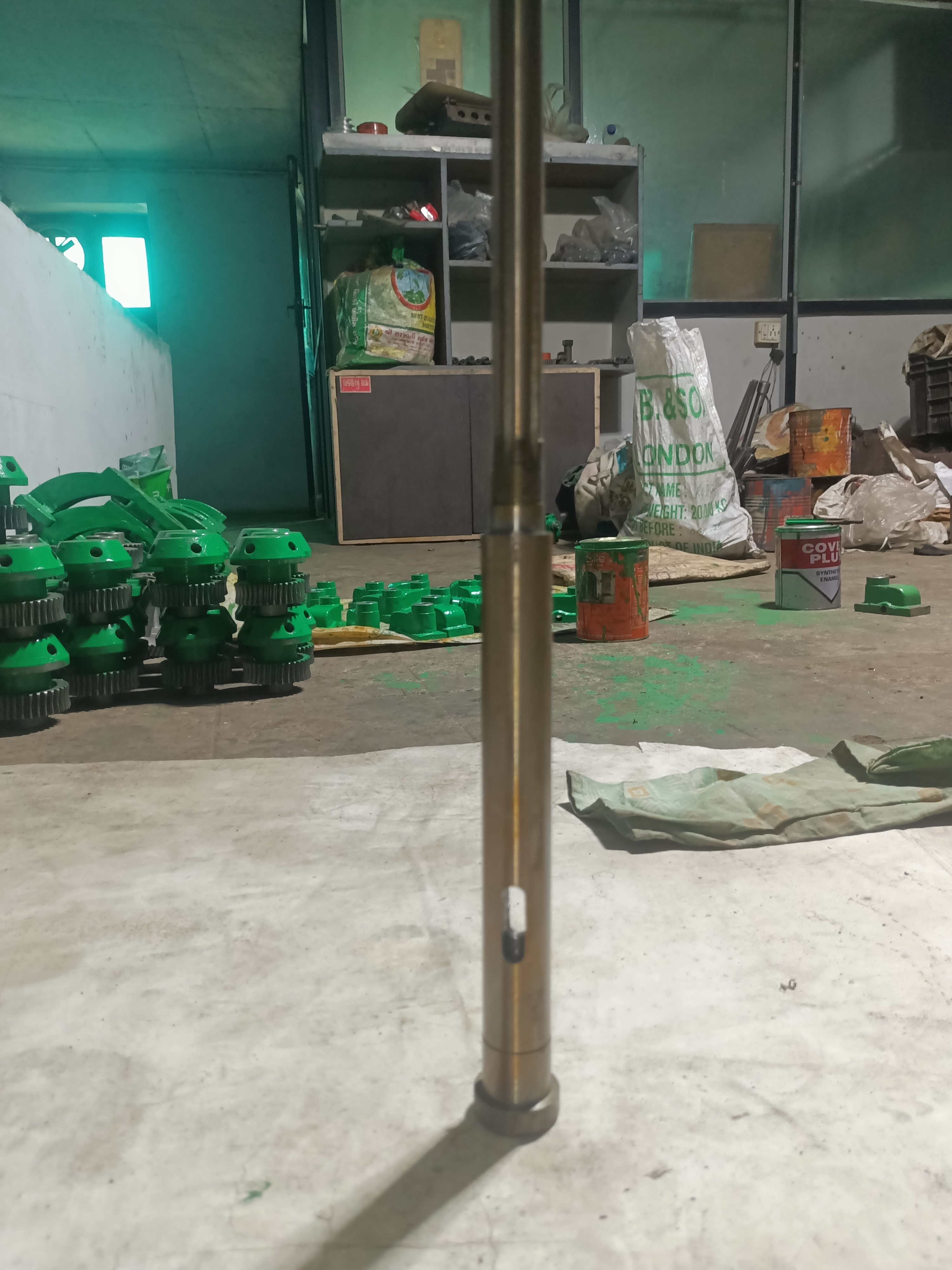

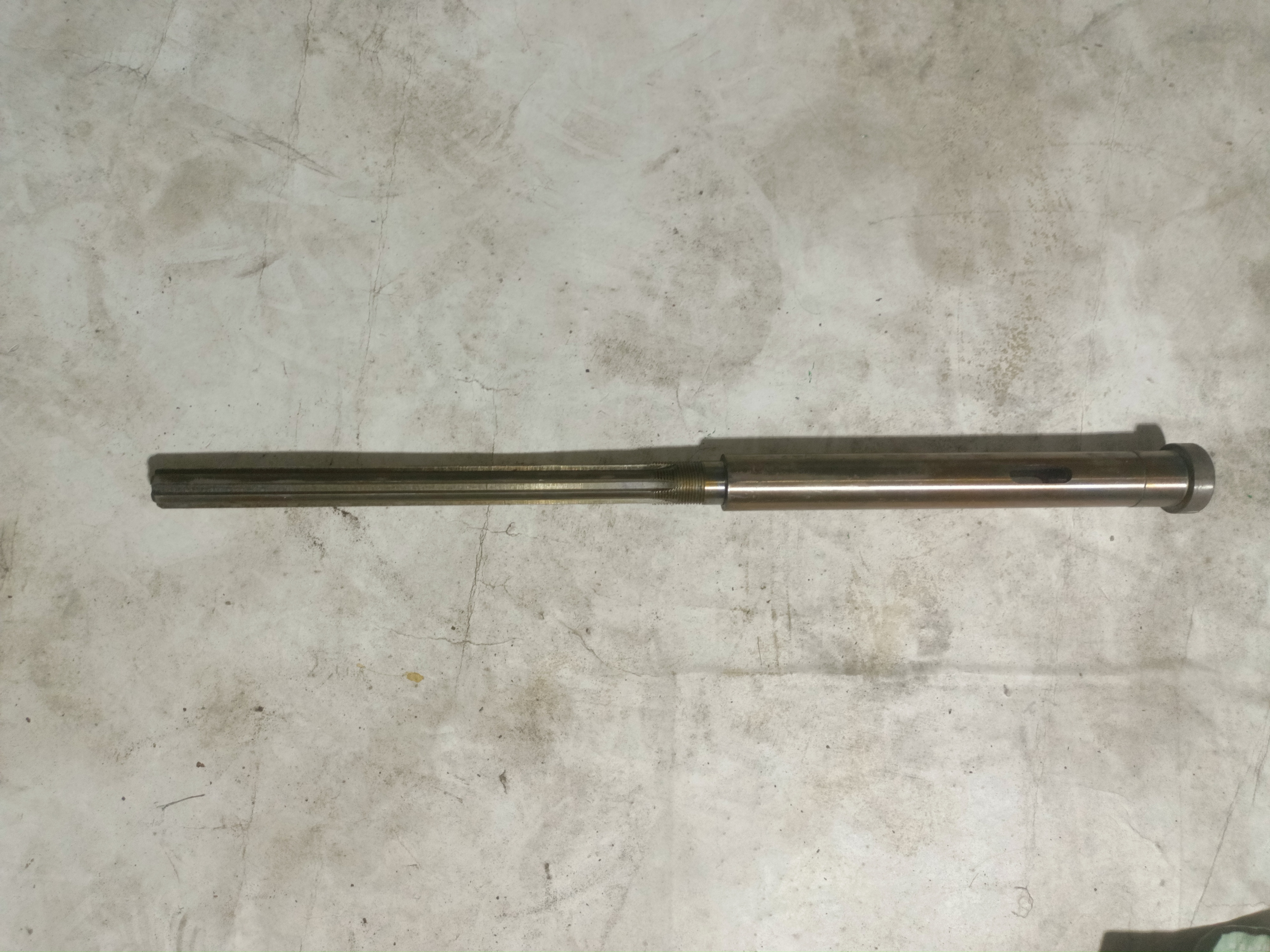

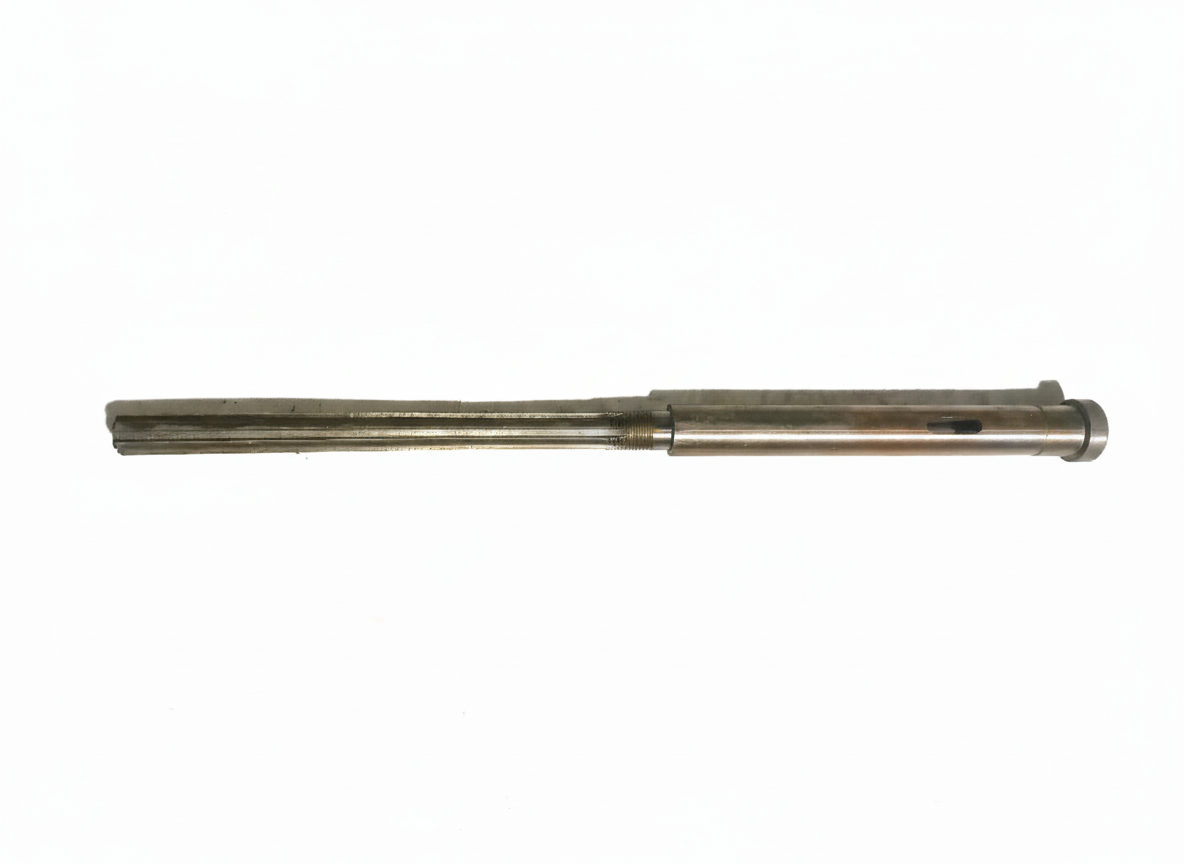

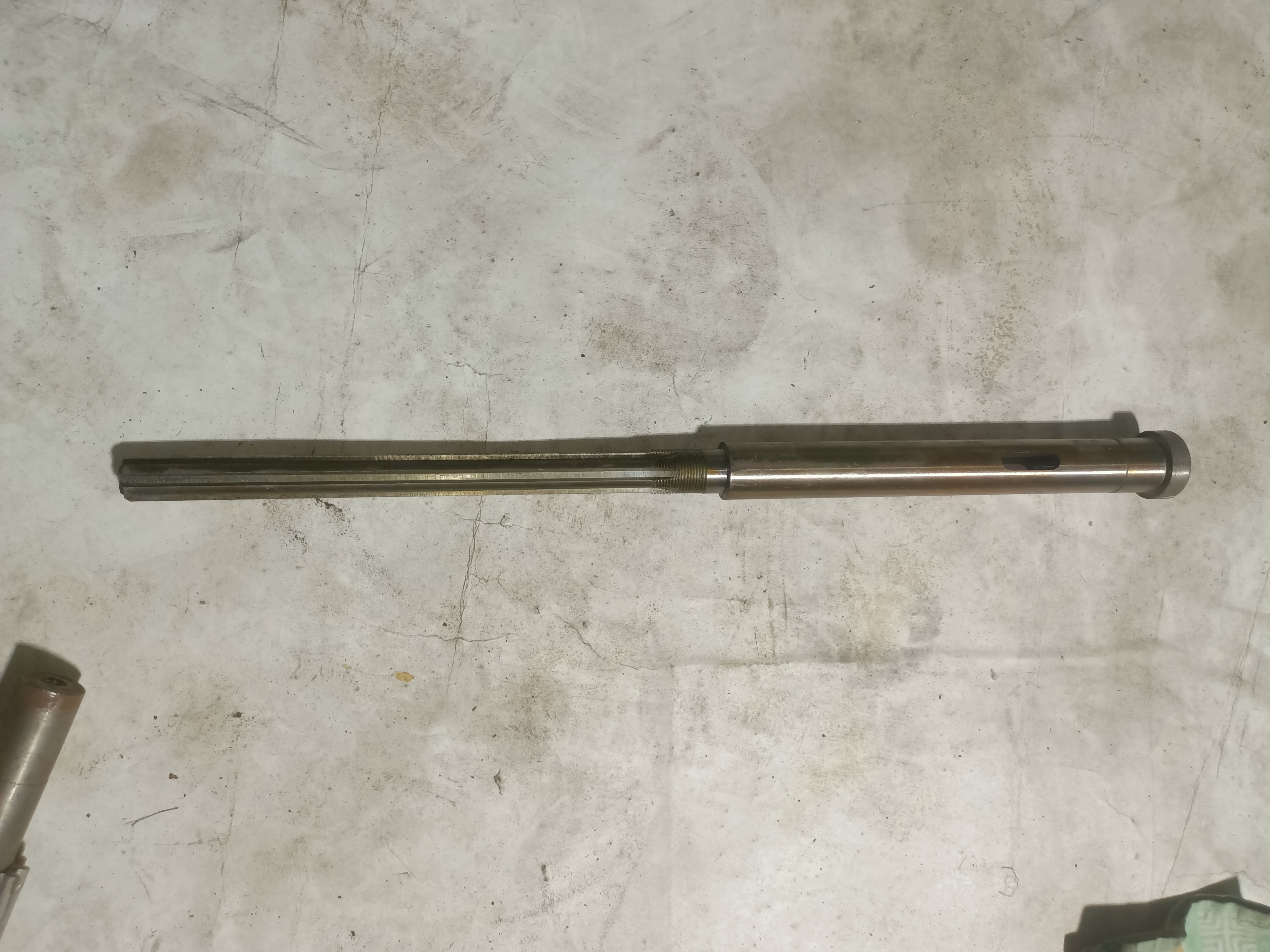

Main Spindle
Central rotating shaft that carries the drill chuck and transmits cutting rotation to the tool.
- Material Options
- Cast Iron (C.I.)
- Available dimensions
- 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample
- Compatibility
- Standard pillar and industrial drill machines
| Material Name | 1/2" Size | 3/4" Size | 3/4" × 15" Size | 1" Size |
|---|---|---|---|---|
| C.I. | ₹620 | ₹800 | ₹800 | ₹1730 |
Main Spindle Manufacturer in Ahmedabad
The Main Spindle is the central rotating shaft of the drill machine. It carries the chuck or taper that holds the drill bit and transmits rotation from the gear train directly into the cutting tool, so its straightness and concentricity decide the accuracy of every hole the machine drills.
Runout at the spindle nose is the clearest sign of a worn or bent spindle: holes come out oversized, the drill wobbles visibly, and tools break more often. Bearing seats and the taper are the areas that typically wear first.
Vishwakarma Engineering Works manufactures main spindles in Ahmedabad, Gujarat as replacement parts for pillar and industrial drill machines. Spindle length, diameter and taper vary by machine, so we ask customers to share the old spindle, a drawing or the machine size with the enquiry. Supply is available locally in Ahmedabad, across Gujarat and to customers throughout India.
Main Spindle Specifications
| Product Name | Main Spindle |
|---|---|
| Material Options | Cast Iron (C.I.) |
| Available Dimensions | 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample |
| Compatibility | Standard pillar and industrial drill machines |
| Manufacturer & Supplier | Vishwakarma Engineering Works, Ahmedabad, Gujarat |
| Supply Scope | Pan India |
Get Price & Availability for Main Spindle
