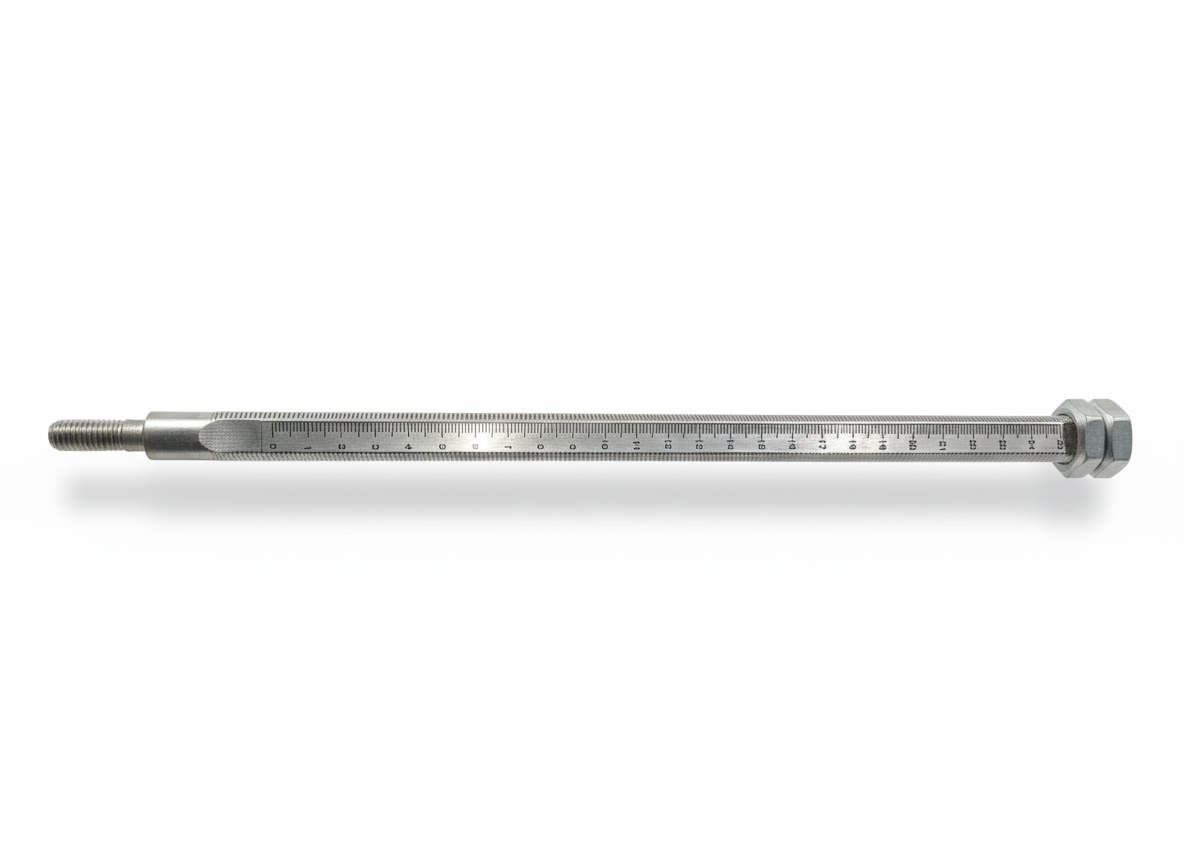

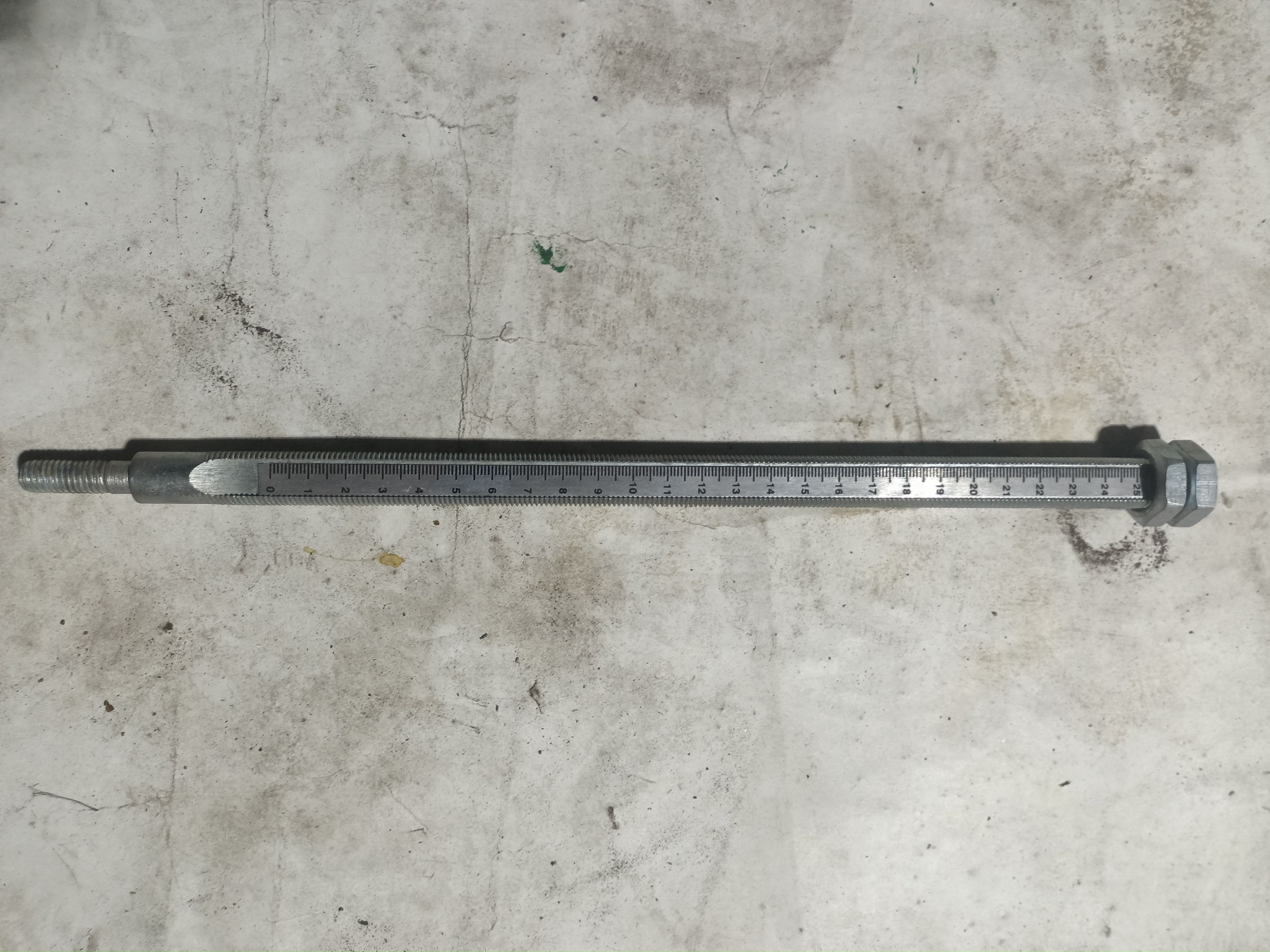

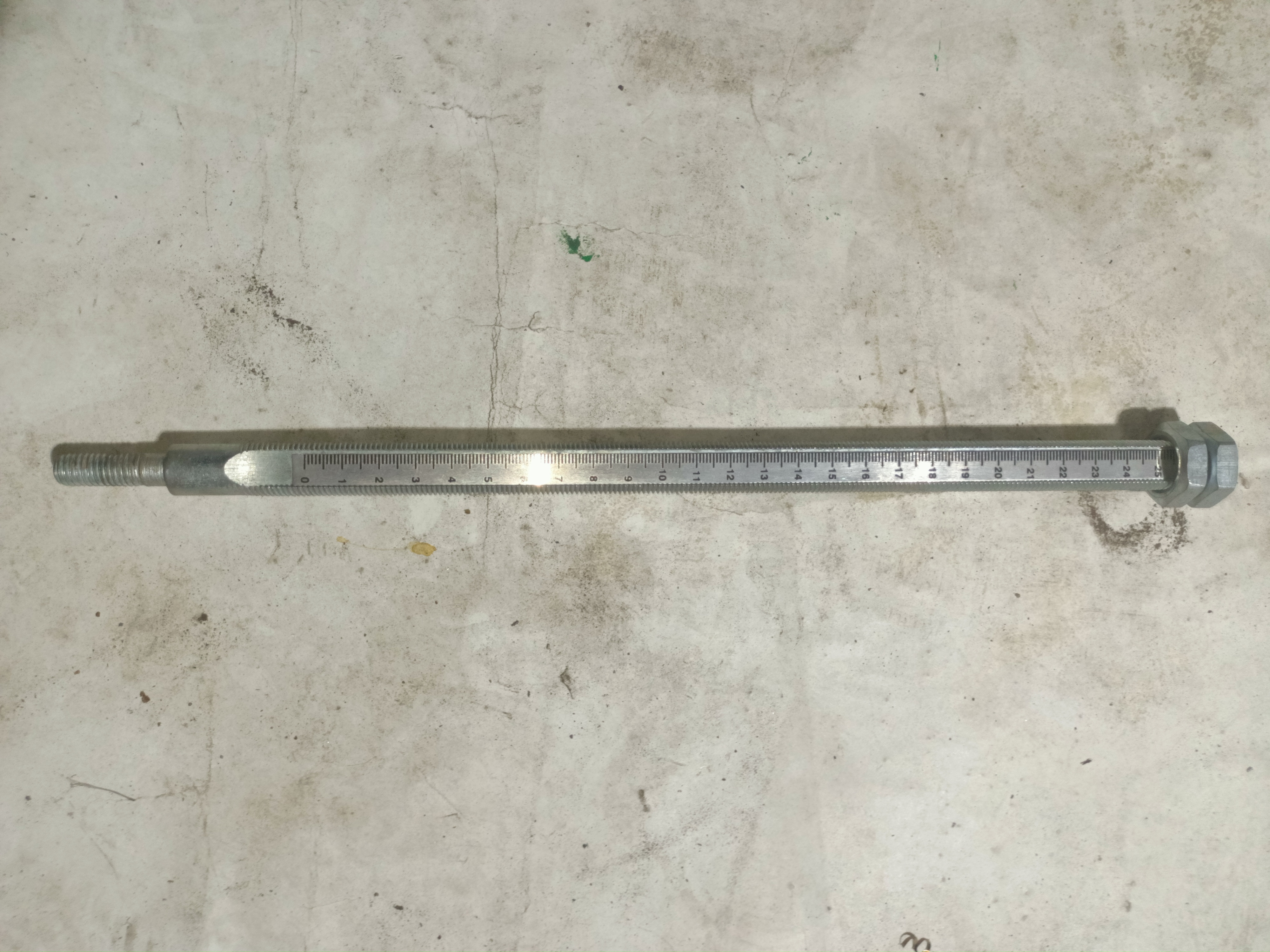

Deep Gauge
Depth gauge assembly used to set and repeat a fixed drilling depth on the machine.
- Material Options
- Cast Iron (C.I.)
- Available dimensions
- 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample
- Compatibility
- Standard pillar and industrial drill machines
| Material Name | 1/2" Size | 3/4" Size | 3/4" × 15" Size | 1" Size |
|---|---|---|---|---|
| C.I. | ₹410 | ₹420 | ₹420 | ₹515 |
Deep Gauge Manufacturer in Ahmedabad
The Deep Gauge, or depth gauge, is the adjustable stop that limits how far the spindle can travel downward. Setting it once allows the operator to drill the same depth repeatedly — essential for blind holes, counterbores and any batch work where consistency matters.
When the gauge threads or the stop face wear, the setting drifts during production and hole depths become inconsistent. A new gauge restores repeatable depth control.
Vishwakarma Engineering Works manufactures depth gauge components in Ahmedabad, Gujarat as drill machine replacement parts. Please share your machine size or the existing part when enquiring. Supply is available across Gujarat and India.
Deep Gauge Specifications
| Product Name | Deep Gauge |
|---|---|
| Material Options | Cast Iron (C.I.) |
| Available Dimensions | 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample |
| Compatibility | Standard pillar and industrial drill machines |
| Manufacturer & Supplier | Vishwakarma Engineering Works, Ahmedabad, Gujarat |
| Supply Scope | Pan India |
Get Price & Availability for Deep Gauge
