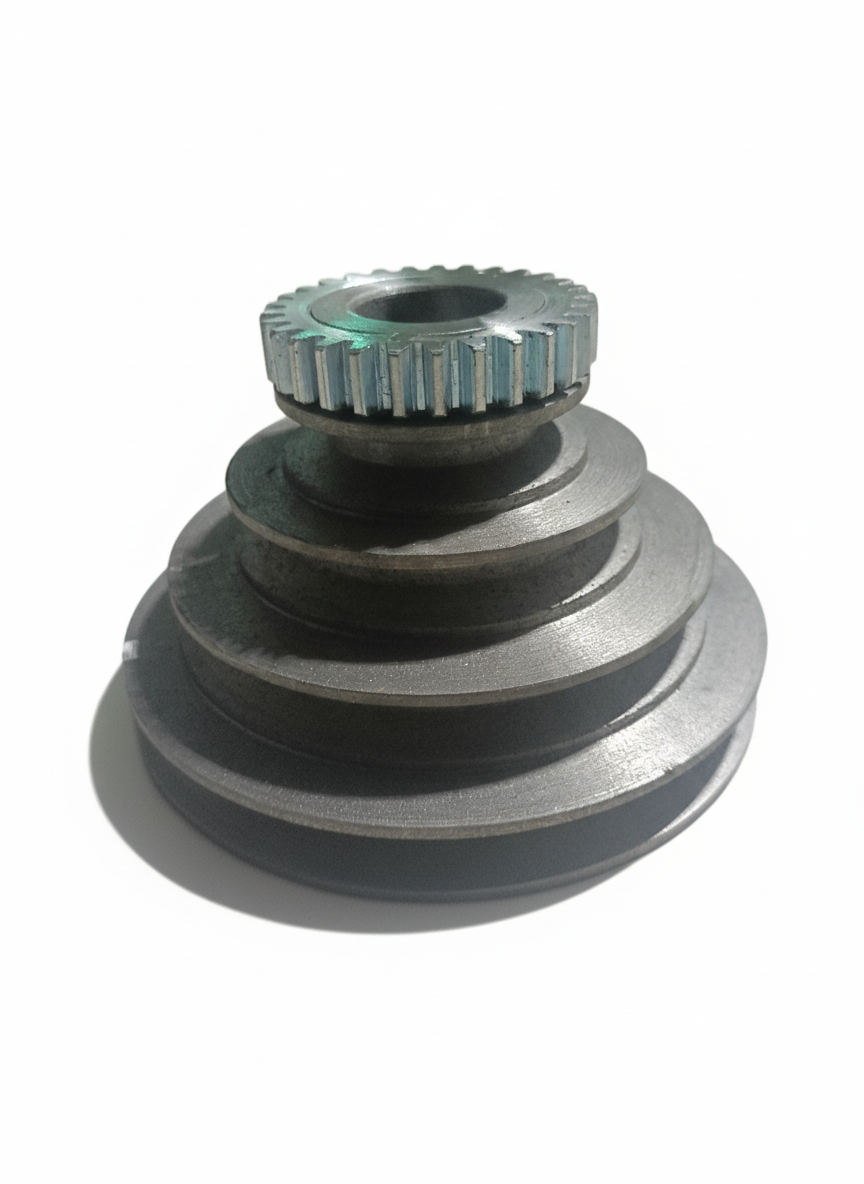

Main Pulley With Gear
Combined stepped pulley and gear unit that transfers belt drive from the motor into the drill machine head.
Drill Machine Spare Parts Manufacturer & Supplier
Vishwakarma Engineering Works manufactures drill machine spare parts in Ahmedabad, Gujarat for repair, maintenance and replacement work. The catalogue below covers power transmission parts, spindle and feed components, table and column parts, tapping components and supporting items. Sizes vary by machine — send your dimensions, sample or machine size with an enquiry and we will confirm the right part.
Showing 32 of 32 products

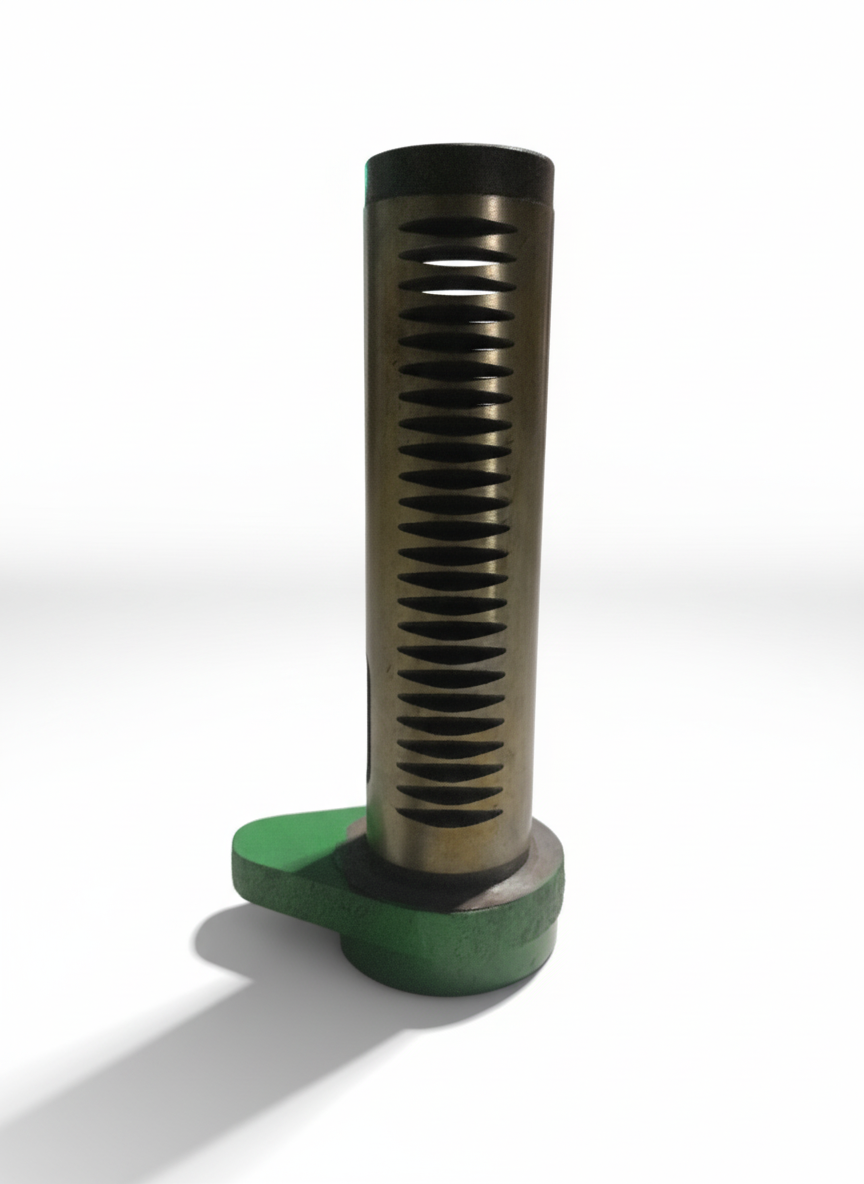

Ram
Sliding feed member that carries the spindle assembly and controls the downward travel of the drill.

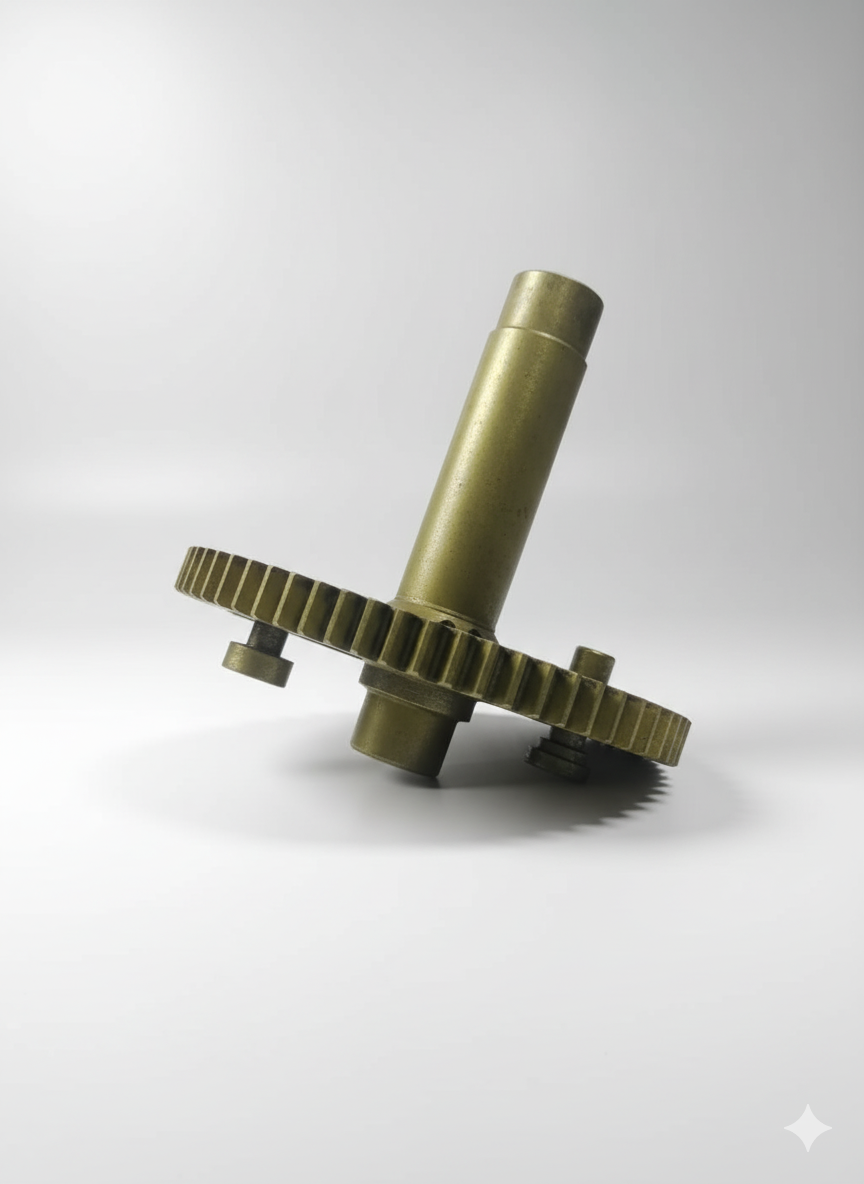

Main Gear
Primary drive gear in the drill machine head that transmits rotation through the gear train to the spindle.

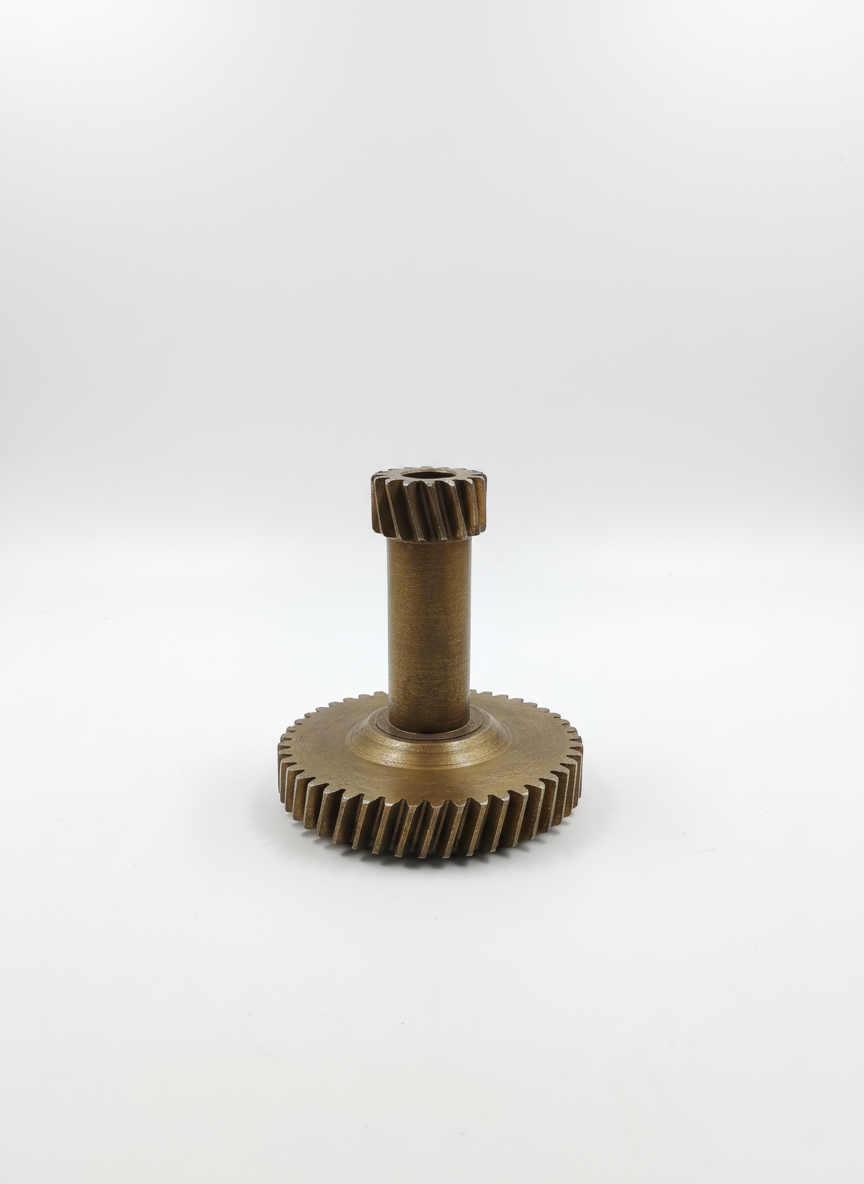

Back Gear
Secondary reduction gear used to obtain lower spindle speeds and higher torque while drilling.
Tapper Block With Gear
Tapping attachment block supplied with its integrated gear for reversing drive during tapping.
Tapper Block
Machined block that mounts and locates the tapping attachment on a drill machine head.
Coil Spring
Return spring that brings the spindle and feed handle back to the raised position after drilling.
Square Table
Square work table that supports the workpiece and clamps below the drilling spindle.
Spring Housing
Housing that encloses the return coil spring and allows spring tension to be set and locked.
Slotted Sleeve
Slotted guide sleeve that locates a rotating or sliding member while allowing controlled movement.
Pinion
Small driving gear that meshes with the larger gear or rack to transmit motion in the drive train.
Pillar Bracket
Bracket that clamps around the pillar column and carries the table assembly at the set height.
Table Bracket
Bracket that mounts the work table to the column assembly and allows it to be positioned and locked.
Rack Gear
Toothed rack that meshes with the pinion to raise and lower the table or head along the column.
Rack Gear Worm
Worm element of the rack assembly that gives controlled, self-holding height adjustment.
Rack Housing
Housing that locates the rack and pinion assembly and keeps the two in correct mesh.
Main Spindle
Central rotating shaft that carries the drill chuck and transmits cutting rotation to the tool.
Pulley Gear
Gear-and-pulley element that links belt drive with the gear train inside the machine head.
Motor Pulley
Stepped pulley fitted on the motor shaft that sets the drive ratio and drill speed range.
Rack Lock Ring
Locking ring that secures the rack assembly on the column and holds the set height.
Deep Gauge
Depth gauge assembly used to set and repeat a fixed drilling depth on the machine.
Motor Plate
Mounting plate that carries the motor and allows belt tension to be adjusted.
Bearing Housing
Machined housing that seats the bearings supporting a rotating shaft or spindle.
Top Bearing Bracket
Upper bracket that locates the top bearing and holds the spindle assembly in alignment.
Bakelite Knob
Moulded bakelite knob fitted on handles and levers for a comfortable, heat-resistant grip.
Motor Plate Stud
Threaded stud used to mount and adjust the motor plate for correct belt tension.
Rack Handle
Handle used to turn the rack and pinion mechanism and raise or lower the table.
Rack Lock With Handle
Combined rack locking arrangement supplied with its operating handle for quick clamping.
Spindle Nut
Nut that retains the spindle and holds bearing preload in the spindle assembly.
Tapper Block Stud
Threaded stud used to mount and secure the tapper block on the drill machine.
Out Excentrece
Eccentric component used to convert handle rotation into controlled feed movement.
Official Rate List W.E.F 01-08-2026
Drill Machine Parts Price List & Material Breakdown
Comprehensive rate list for industrial drill machine spare parts. Prices are structured based on machine capacities (1/2", 3/4", 3/4" × 15", 1") and material variants including Cast Iron (C.I.) and Mild Steel (M.S.).
Material:
| Sr. | Part Name | Material Variant | Available Sizes | 1/2" Price | 3/4" Price | 3/4" × 15" Price | 1" Price | Enquire |
|---|---|---|---|---|---|---|---|---|
| 1 | Main Spindle | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹620 | ₹800 | ₹800 | ₹1730 | |
| 2 | Threaded Spindle with Nut | C.I. | 3/4", 3/4" x 15", 1" | N/A | ₹1100 | ₹1100 | ₹2650 | |
| 3 | Spindle Nut | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹175 | ₹185 | ₹185 | ₹525 | |
| 4 | RAM (C.I.) | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹730 | ₹835 | ₹835 | ₹1730 | |
| 5 | Ram Special (M.S.) | M.S. | 1/2", 3/4", 3/4" x 15", 1" | ₹875 | ₹1100 | ₹1100 | ₹2100 | |
| 6 | Ram Nut (M.S.) | M.S. | 1/2", 3/4", 3/4" x 15", 1" | ₹155 | ₹160 | ₹160 | ₹400 | |
| 7 | Main Gear (63, 64, 59, 80 Teeth) | C.I. | 3/4", 3/4" x 15", 1" | N/A | ₹835 | ₹835 | ₹1600 | |
| 8 | Main Gear (M.S.) | M.S. | 3/4", 3/4" x 15", 1" | N/A | ₹900 | ₹900 | ₹2050 | |
| 9 | Back Gear | C.I. | 3/4", 3/4" x 15", 1" | N/A | ₹710 | ₹710 | ₹1515 | |
| 10 | Back Gear (M.S.) | M.S. | 3/4", 3/4" x 15", 1" | N/A | ₹860 | ₹860 | ₹1900 | |
| 11 | Main Pulley With Gear | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹595 | ₹930 | ₹930 | ₹1670 | |
| 12 | Only Pulley Gear (26, 28, 29, 36) | C.I. | 3/4", 3/4" x 15", 1" | N/A | ₹185 | ₹185 | ₹620 | |
| 13 | Motor Pulley | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹550 | ₹650 | ₹650 | ₹1085 | |
| 14 | Tapper Block | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹500 | ₹585 | ₹585 | ₹890 | |
| 15 | Tapper Block Stud | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹125 | ₹132 | ₹132 | ₹150 | |
| 16 | Tapper Block Stud Knob (1 Pc.) | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹123 | ₹127 | ₹127 | ₹130 | |
| 17 | Coil Spring | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹170 | ₹175 | ₹175 | ₹490 | |
| 18 | Spring Housing | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹430 | ₹455 | ₹455 | ₹595 | |
| 19 | Slotted Sleeve | C.I. | 1/2" | ₹480 | N/A | N/A | N/A | |
| 20 | Pinion | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹480 | ₹525 | ₹525 | ₹675 | |
| 21 | Out Excentrece | C.I. | 3/4", 3/4" x 15", 1" | N/A | ₹455 | ₹455 | ₹655 | |
| 22 | Out Excentrece Knob | C.I. | 3/4", 3/4" x 15", 1" | N/A | ₹175 | ₹175 | ₹450 | |
| 23 | Pillar Bracket | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹940 | ₹1275 | ₹4550 | ₹4550 | |
| 24 | Table Bracket | C.I. | 1/2", 3/4" | ₹770 | ₹920 | N/A | N/A | |
| 25 | Rack | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹535 | ₹620 | ₹975 | ₹975 | |
| 26 | Rack Gear | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹170 | ₹190 | ₹430 | ₹450 | |
| 27 | Rack Gear Worm | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹420 | ₹430 | ₹450 | ₹450 | |
| 28 | Rack Housing | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹470 | ₹500 | ₹620 | ₹620 | |
| 29 | Rack Handle | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹180 | ₹405 | ₹405 | ₹450 | |
| 30 | Rack Lock Ring | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹185 | ₹415 | ₹515 | ₹515 | |
| 31 | Square Table | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹1100 | ₹2300 | ₹4500 | ₹4500 | |
| 32 | Deep Gauge | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹410 | ₹420 | ₹420 | ₹515 | |
| 33 | Ram Lock Piece With Handle | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹430 | ₹460 | ₹460 | ₹515 | |
| 34 | Pillar Lock Piece With Handle | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹415 | ₹515 | ₹620 | ₹620 | |
| 35 | Tool Tray | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹500 | ₹535 | ₹620 | ₹620 | |
| 36 | Motor Plate | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹675 | ₹850 | ₹950 | ₹950 | |
| 37 | Ram Locking | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹155 | ₹185 | ₹185 | ₹430 | |
| 38 | Body Locking | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹400 | ₹430 | ₹430 | ₹515 | |
| 39 | Bearing Housing | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹420 | ₹450 | ₹450 | ₹535 | |
| 40 | Motor Plate Stud (One Pc.) | C.I. | 1/2", 3/4", 3/4" x 15", 1" | ₹135 | ₹155 | ₹155 | ₹185 | |
| 41 | Top Bearing Bracket | C.I. | 1/2", 3/4", 3/4" x 15" | ₹620 | ₹1025 | ₹1025 | N/A | |
| 42 | Alu. Cover | Aluminium | 1/2", 3/4" | ₹1150 | ₹1700 | N/A | N/A |
* Prices are effective from 01-08-2026. Taxes & transport as applicable. Sizes manufactured to machine specifications.
