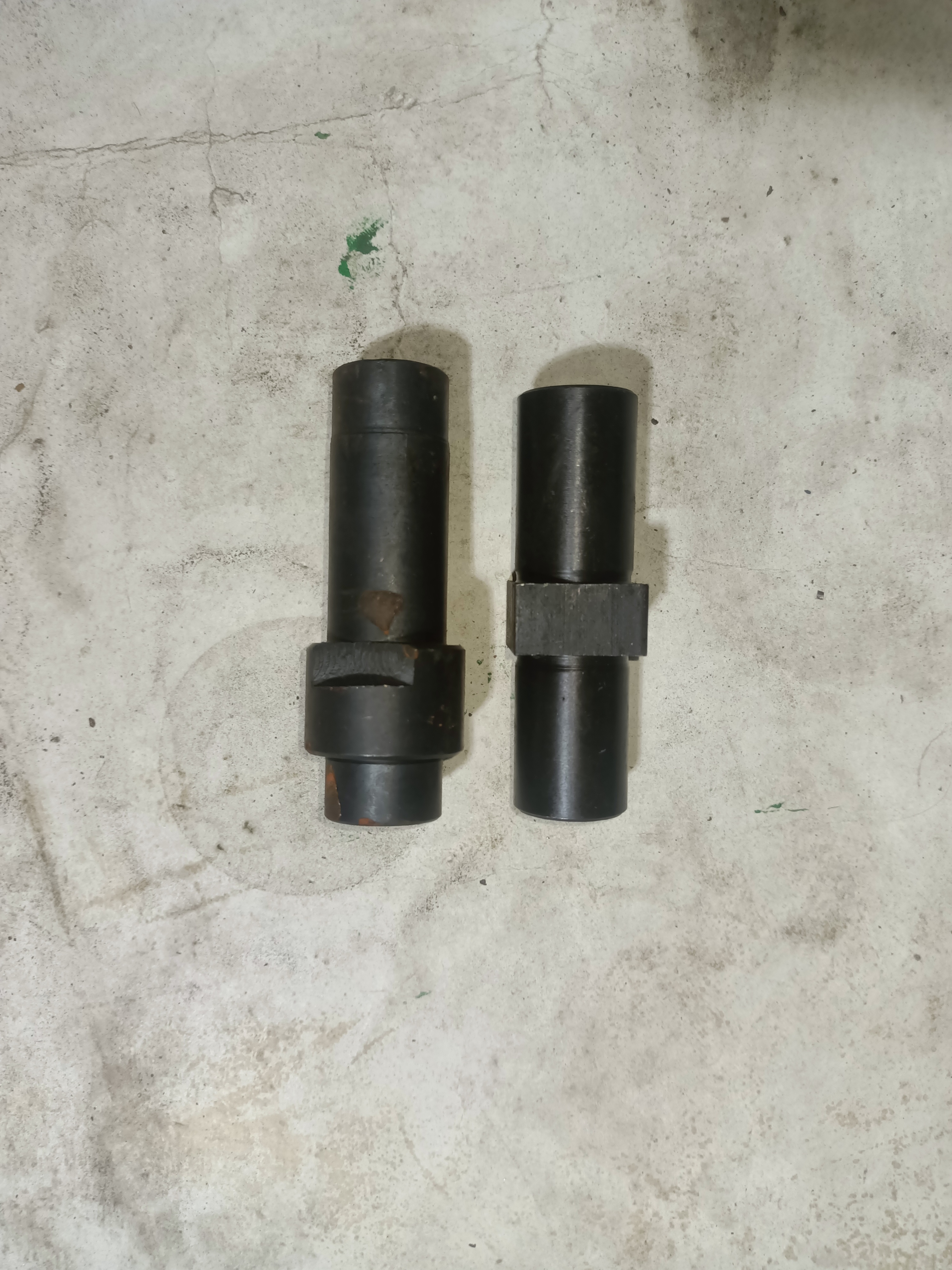

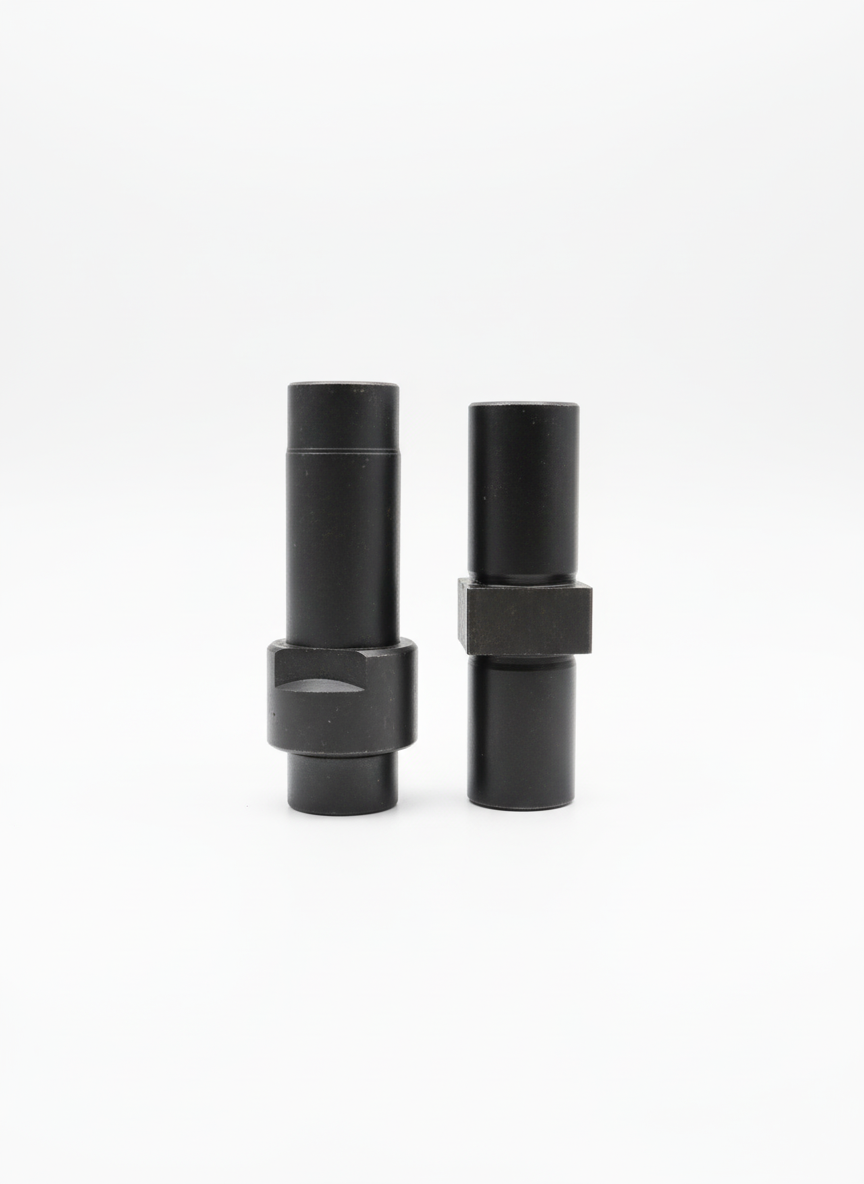

Slotted Sleeve
Slotted guide sleeve that locates a rotating or sliding member while allowing controlled movement.
- Material Options
- Cast Iron (C.I.)
- Available dimensions
- 1/2" or manufactured to sample
- Compatibility
- Standard pillar and industrial drill machines
| Material Name | 1/2" Size | 3/4" Size | 3/4" × 15" Size | 1" Size |
|---|---|---|---|---|
| C.I. | ₹480 | N/A | N/A | N/A |
Slotted Sleeve Manufacturer in Ahmedabad
The Slotted Sleeve is a guide component: the slot machined along its body allows a key, pin or driving member to travel along the sleeve while rotation is still transmitted. This is what lets a shaft move axially and drive at the same time.
Wear along the slot edges introduces backlash, which shows up as knocking during feed or as lost motion in the assembly. A replacement sleeve removes that play.
This part is manufactured by Vishwakarma Engineering Works in Ahmedabad, Gujarat. Bore, length and slot dimensions vary with the machine, so send an existing sample, a drawing or dimensions with your enquiry. We supply to customers in Ahmedabad, Gujarat and across India.
Slotted Sleeve Specifications
| Product Name | Slotted Sleeve |
|---|---|
| Material Options | Cast Iron (C.I.) |
| Available Dimensions | 1/2" or manufactured to sample |
| Compatibility | Standard pillar and industrial drill machines |
| Manufacturer & Supplier | Vishwakarma Engineering Works, Ahmedabad, Gujarat |
| Supply Scope | Pan India |
Get Price & Availability for Slotted Sleeve
