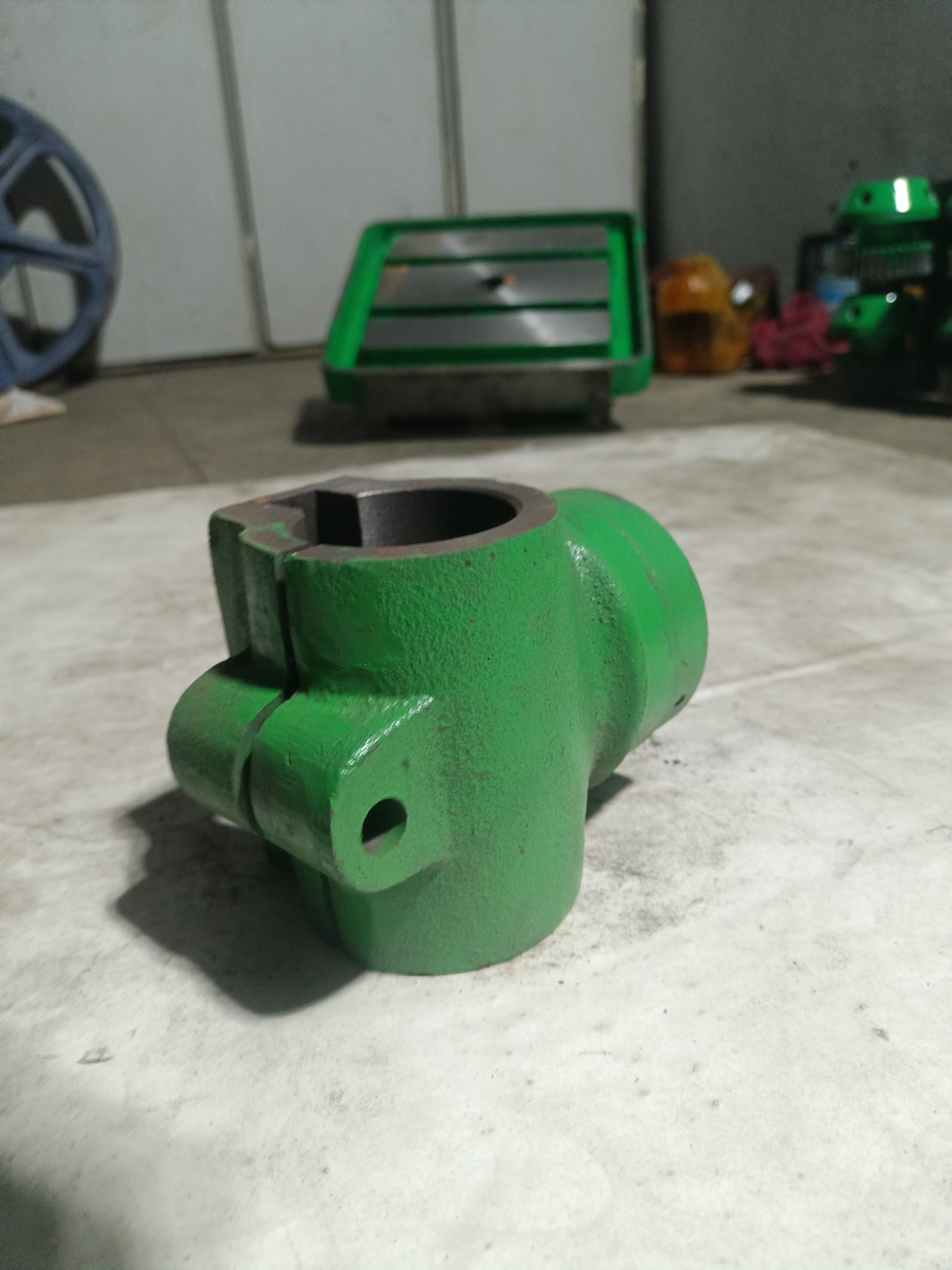

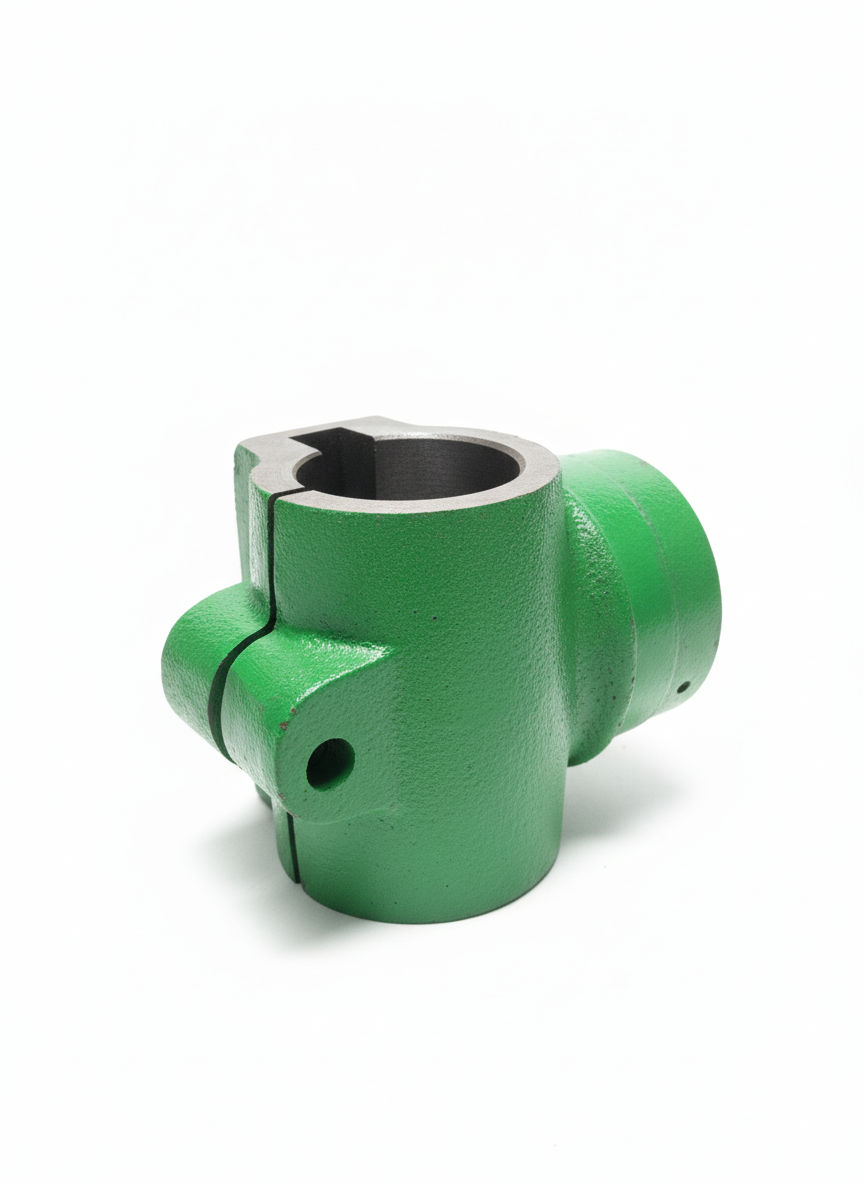

Pillar Bracket
Bracket that clamps around the pillar column and carries the table assembly at the set height.
- Material Options
- Cast Iron (C.I.)
- Available dimensions
- 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample
- Compatibility
- Standard pillar and industrial drill machines
| Material Name | 1/2" Size | 3/4" Size | 3/4" × 15" Size | 1" Size |
|---|---|---|---|---|
| C.I. | ₹940 | ₹1275 | ₹4550 | ₹4550 |
| C.I. | ₹535 | ₹620 | ₹975 | ₹975 |
Pillar Bracket Manufacturer in Ahmedabad
The Pillar Bracket clamps around the vertical column of the drill machine and supports the table assembly at whatever height the operator has set. It has to grip the pillar firmly, because everything above it — table, bracket and workpiece — is carried on this single clamp.
A bracket that has lost clamping force, or whose bore has worn oval, allows the table to drop or tilt under load. That is both a quality problem and a safety concern, so a worn pillar bracket should be replaced rather than over-tightened.
Vishwakarma Engineering Works manufactures pillar brackets in Ahmedabad, Gujarat. Bore size must match the pillar diameter of your machine, so please share that dimension or your machine size when enquiring. We supply in Ahmedabad, across Gujarat and to customers throughout India.
Pillar Bracket Specifications
| Product Name | Pillar Bracket |
|---|---|
| Material Options | Cast Iron (C.I.) |
| Available Dimensions | 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample |
| Compatibility | Standard pillar and industrial drill machines |
| Manufacturer & Supplier | Vishwakarma Engineering Works, Ahmedabad, Gujarat |
| Supply Scope | Pan India |
Get Price & Availability for Pillar Bracket
