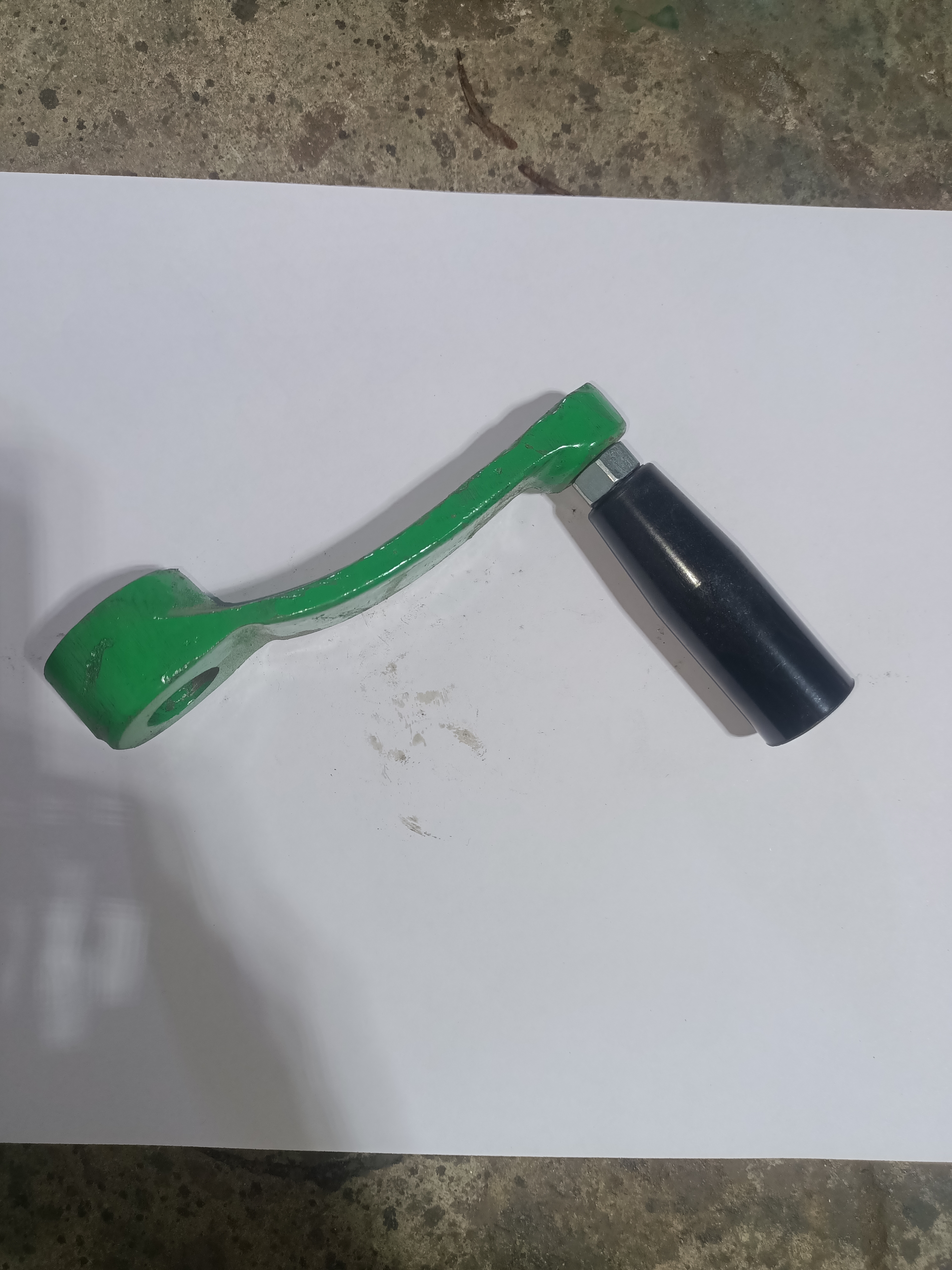

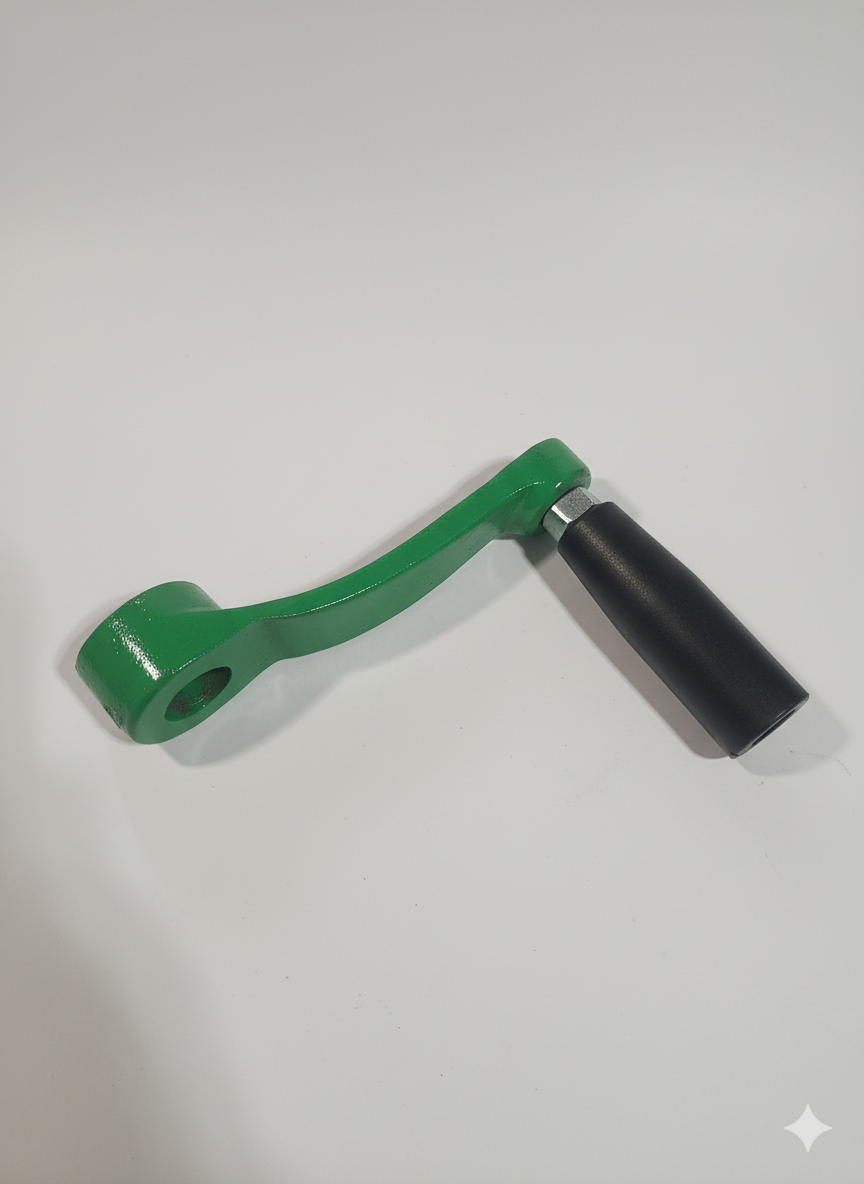

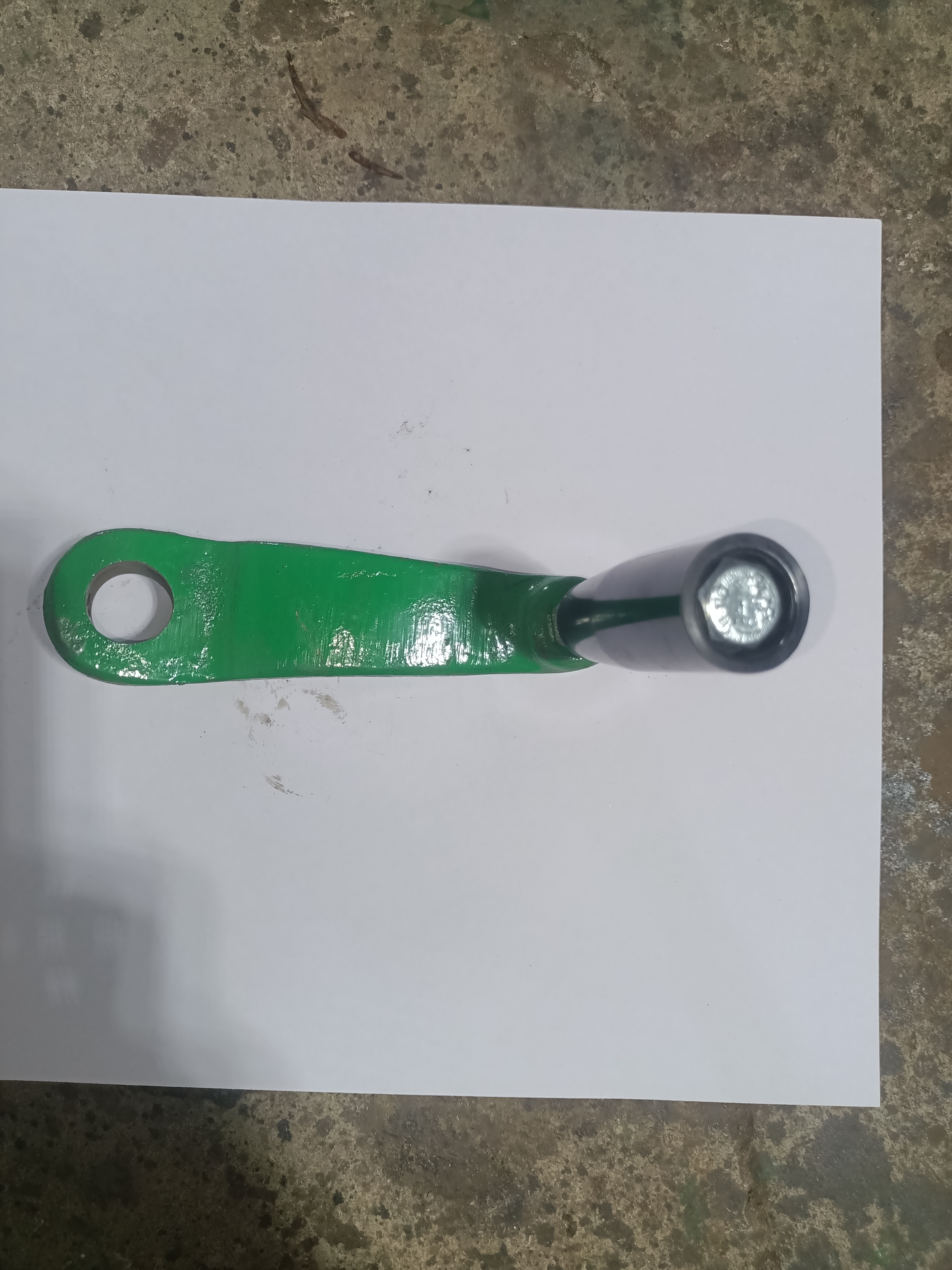

Rack Handle
Handle used to turn the rack and pinion mechanism and raise or lower the table.
- Material Options
- Cast Iron (C.I.)
- Available dimensions
- 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample
- Compatibility
- Standard pillar and industrial drill machines
| Material Name | 1/2" Size | 3/4" Size | 3/4" × 15" Size | 1" Size |
|---|---|---|---|---|
| C.I. | ₹535 | ₹620 | ₹975 | ₹975 |
| C.I. | ₹180 | ₹405 | ₹405 | ₹450 |
Rack Handle Manufacturer in Ahmedabad
The Rack Handle is what the operator turns to drive the pinion along the rack and move the table up or down the column. It has to fit the shaft squarely, because all the effort of lifting the table passes through that connection.
A handle with a worn or rounded fitting slips on the shaft and makes height adjustment difficult. Replacing the handle restores a positive grip on the mechanism.
Vishwakarma Engineering Works manufactures rack handles in Ahmedabad, Gujarat as replacement parts. Please confirm the shaft size or send the existing handle when enquiring. Supply is available throughout Gujarat and across India.
Rack Handle Specifications
| Product Name | Rack Handle |
|---|---|
| Material Options | Cast Iron (C.I.) |
| Available Dimensions | 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample |
| Compatibility | Standard pillar and industrial drill machines |
| Manufacturer & Supplier | Vishwakarma Engineering Works, Ahmedabad, Gujarat |
| Supply Scope | Pan India |
Get Price & Availability for Rack Handle
