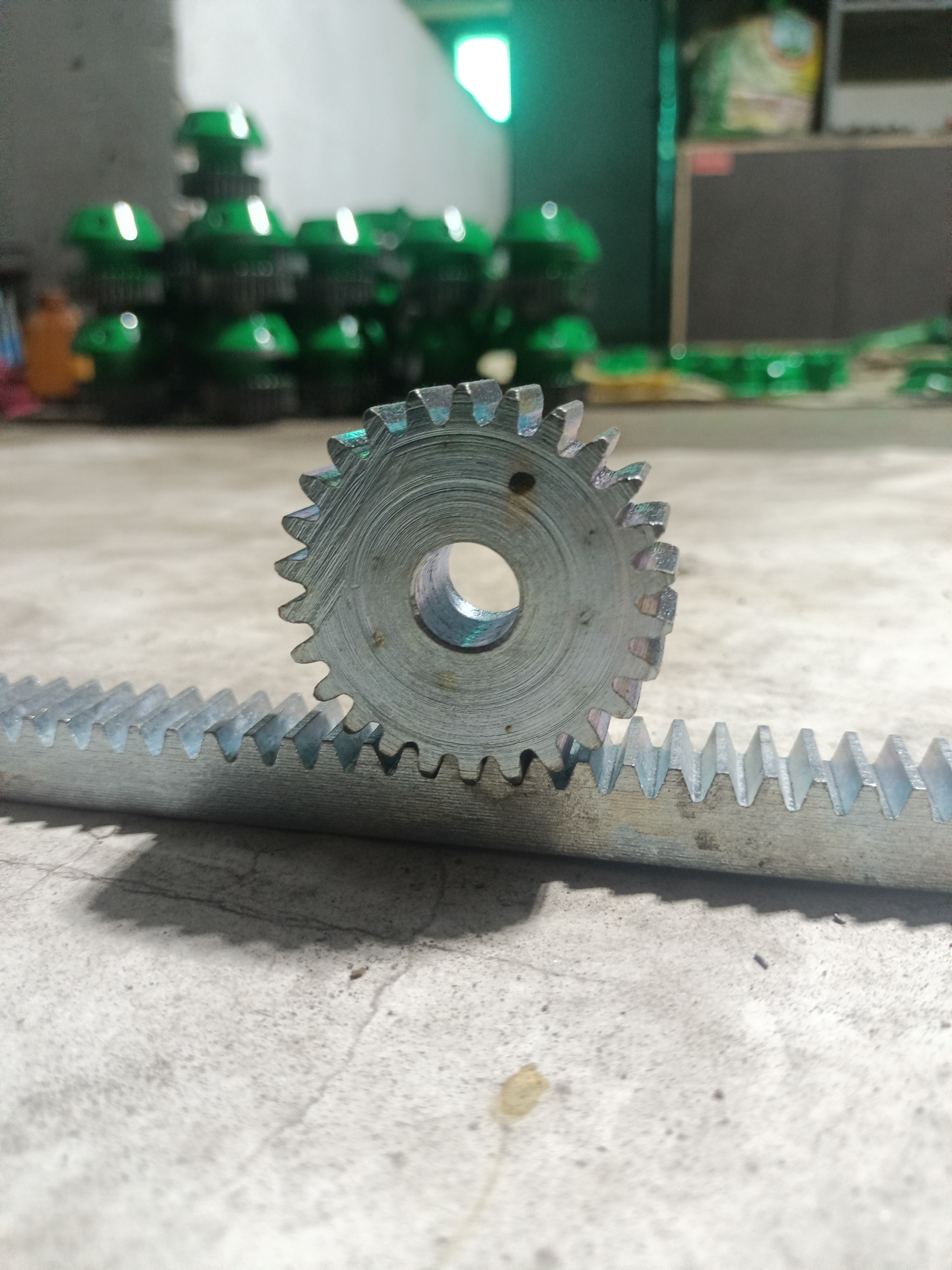

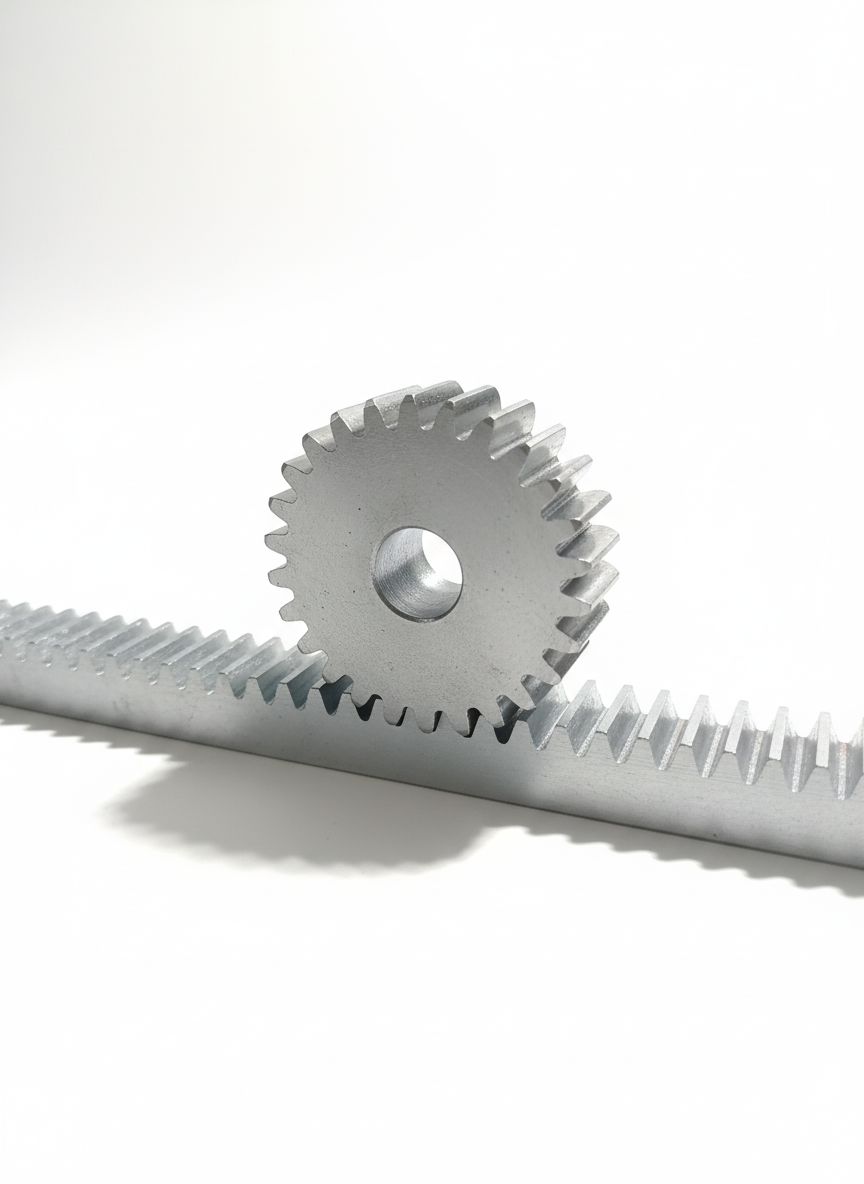

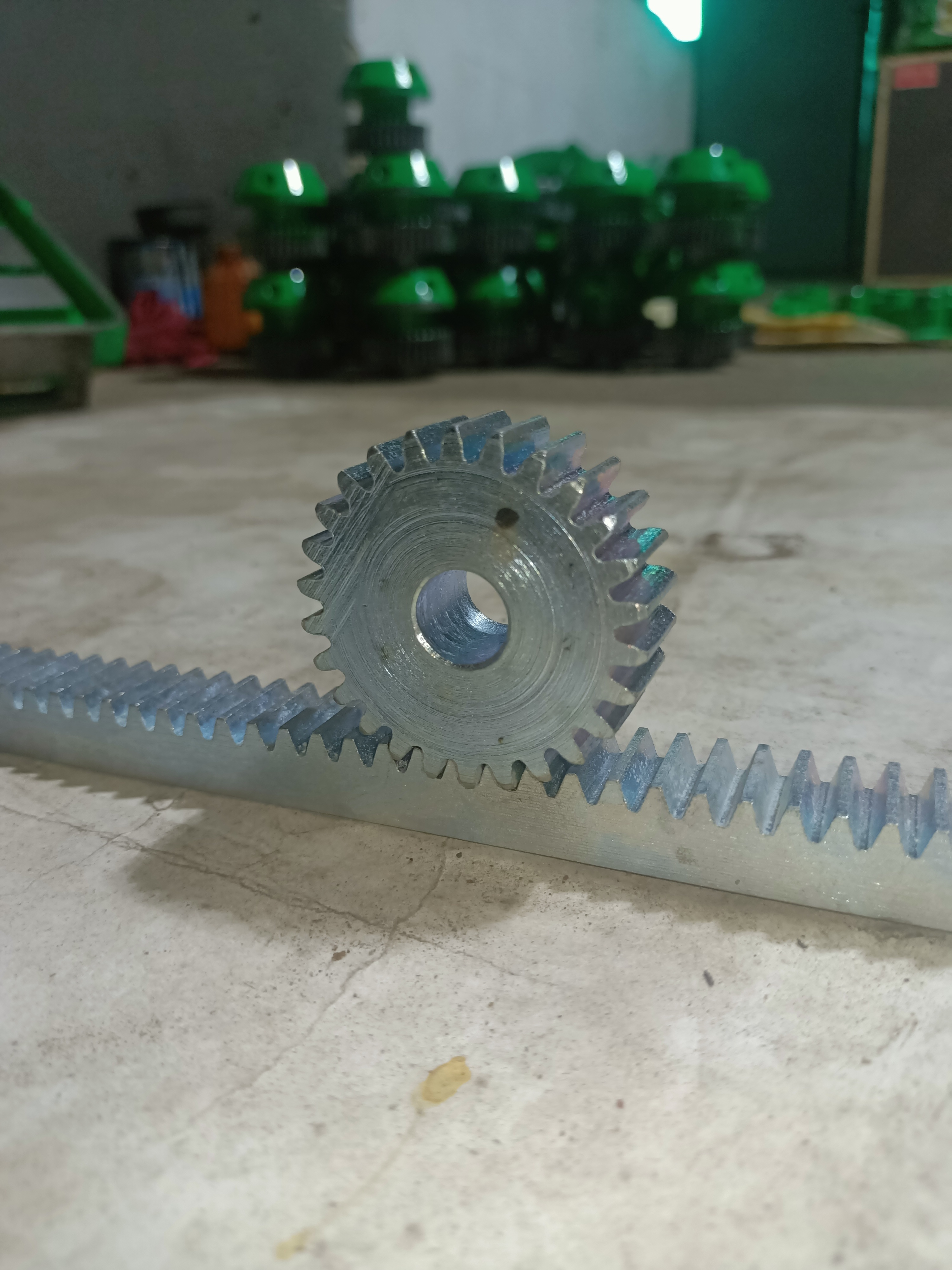

Rack Gear
Toothed rack that meshes with the pinion to raise and lower the table or head along the column.
- Material Options
- Cast Iron (C.I.)
- Available dimensions
- 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample
- Compatibility
- Standard pillar and industrial drill machines
| Material Name | 1/2" Size | 3/4" Size | 3/4" × 15" Size | 1" Size |
|---|---|---|---|---|
| C.I. | ₹535 | ₹620 | ₹975 | ₹975 |
| C.I. | ₹170 | ₹190 | ₹430 | ₹450 |
| C.I. | ₹420 | ₹430 | ₹450 | ₹450 |
Rack Gear Manufacturer in Ahmedabad
The Rack Gear is the straight toothed bar fitted along the column of the drill machine. A pinion meshes with it so that turning the handle raises or lowers the table smoothly and without lifting the load by hand.
Rack teeth take concentrated loading at the height positions used most often, so wear is usually localised. Once the teeth are rounded at those positions, the handle slips and height adjustment becomes unreliable.
Vishwakarma Engineering Works manufactures rack gears in Ahmedabad, Gujarat as replacement parts. Length and tooth pitch depend on the machine, so please share the required length or the existing rack details when you enquire. Supply is available in Gujarat and across India.
Rack Gear Specifications
| Product Name | Rack Gear |
|---|---|
| Material Options | Cast Iron (C.I.) |
| Available Dimensions | 1/2", 3/4", 3/4" x 15", 1" or manufactured to sample |
| Compatibility | Standard pillar and industrial drill machines |
| Manufacturer & Supplier | Vishwakarma Engineering Works, Ahmedabad, Gujarat |
| Supply Scope | Pan India |
Get Price & Availability for Rack Gear
